BrainLM

A Foundation Model for Interpretable and Generalizable Analysis of Human Brain Activity

Aakash Patel

Department of Computer Science, Yale University

Overview

  1. Foundation Model Background
  2. BrainLM Architecture and Training
  3. Model Benchmarking and Applications

The "Foundation" Model Concept

Traditional AI: Narrowly defined tasks, limited generalization

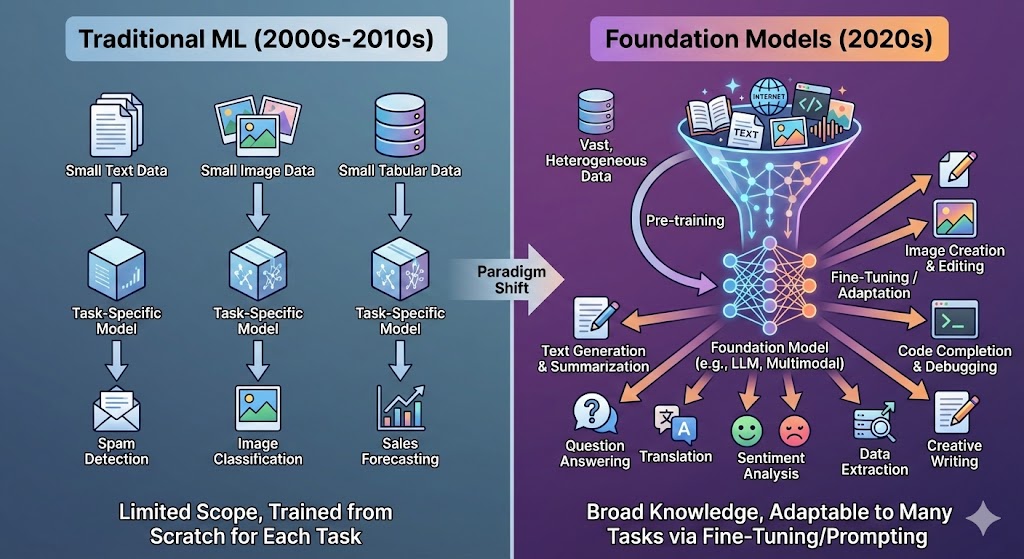

Traditional ML vs Foundation Models

Foundation Models:

  • Trained on vast, heterogeneous data
  • Self-supervised learning
  • Adaptable to diverse applications

Image generated by Google Gemini

How Foundation Models "Learn"

The "Fill-in-the-Blank" Approach

  • The cat sat on the ____mat.
  • Masking: Minimize reconstruction error
  • Result: Model learns underlying structure

Similar to a "cloze test" — predict the missing word/data

The Challenge of fMRI Analysis

  • Data Complexity: High-dimensional, non-linear
  • Variability: Across scanners, sites, cohorts
  • Generalization Gap: Models fail on new datasets
  • Data Scarcity: Prior work used small datasets

Introducing BrainLM

6,700 hours of fMRI data

77,000 recordings from 42,000 subjects (UK Biobank)

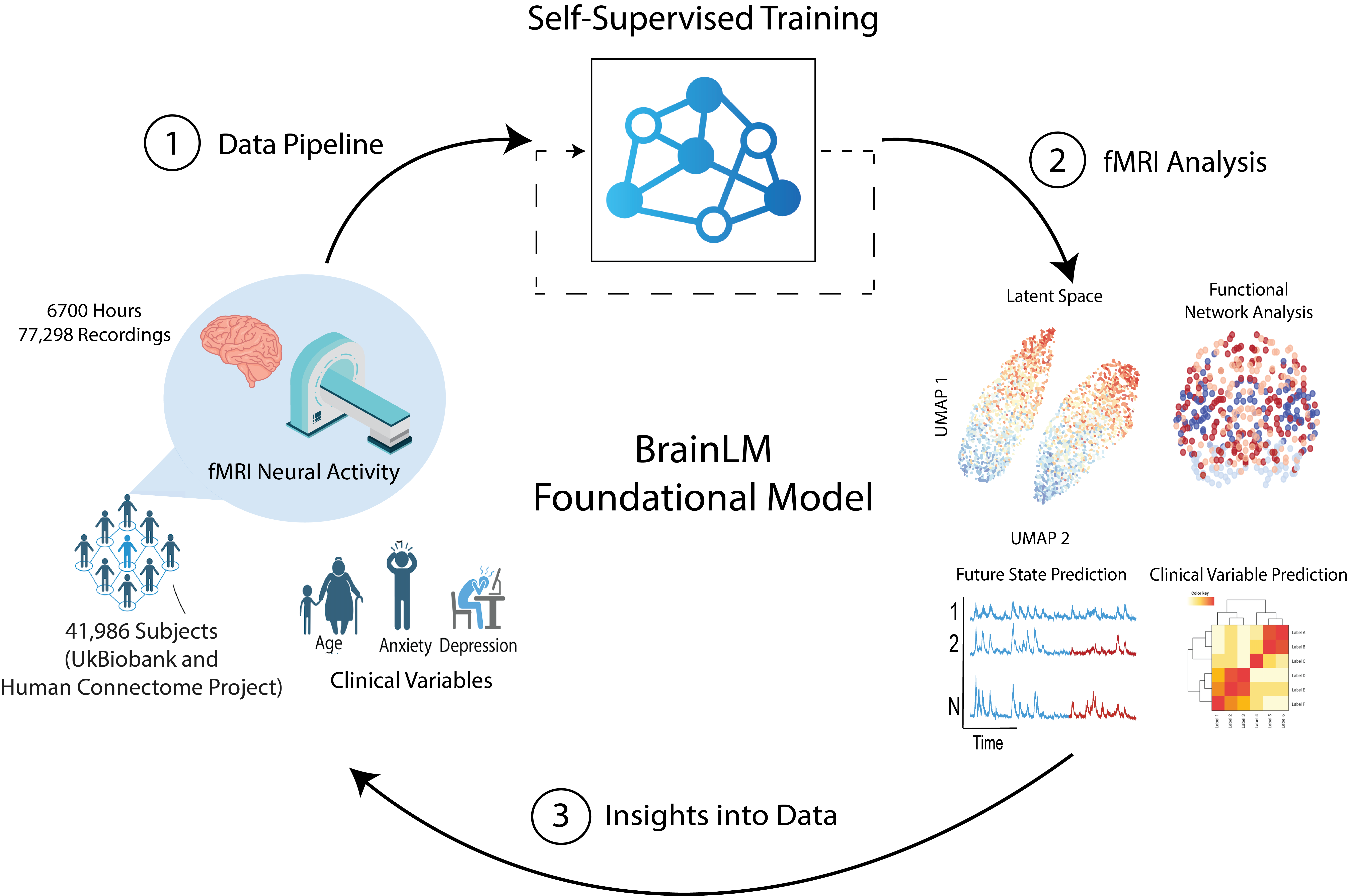

Figure 1: BrainLM Overview

BrainLM Framework Overview

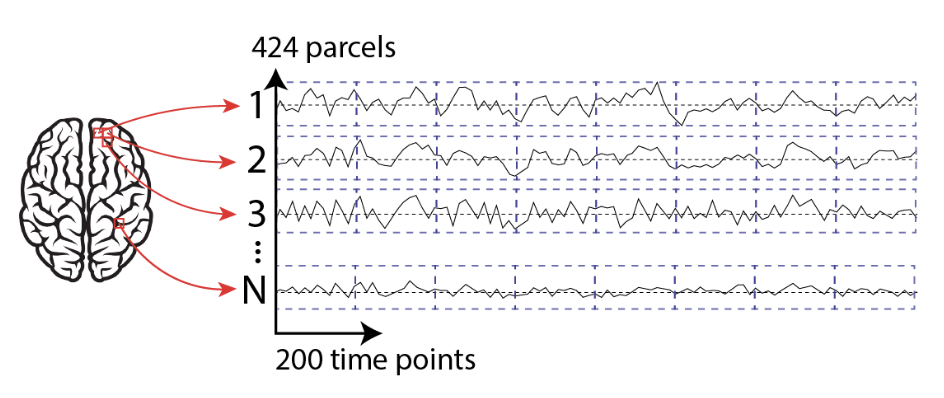

ROI Parcellation

  • Preprocessing: Motion distortion correction, denoising, temporal filtering, and framewise displacement correction.
  • Volumes moothed to 4 mm FWHM and parcellated into 424 functional regions.
ROI Parcellation

ROI Parcellation

Spatiotemporal Masking

Spatiotemporal Masking

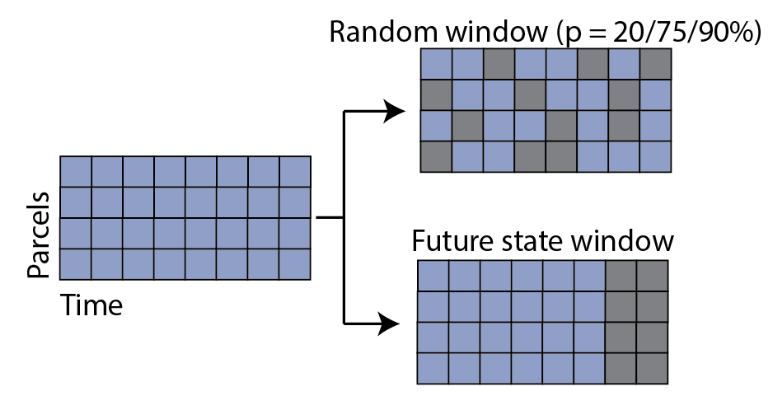

Spatiotemporal Masking: Randomly mask 200 time-step windows

Model Architecture

Model Architecture

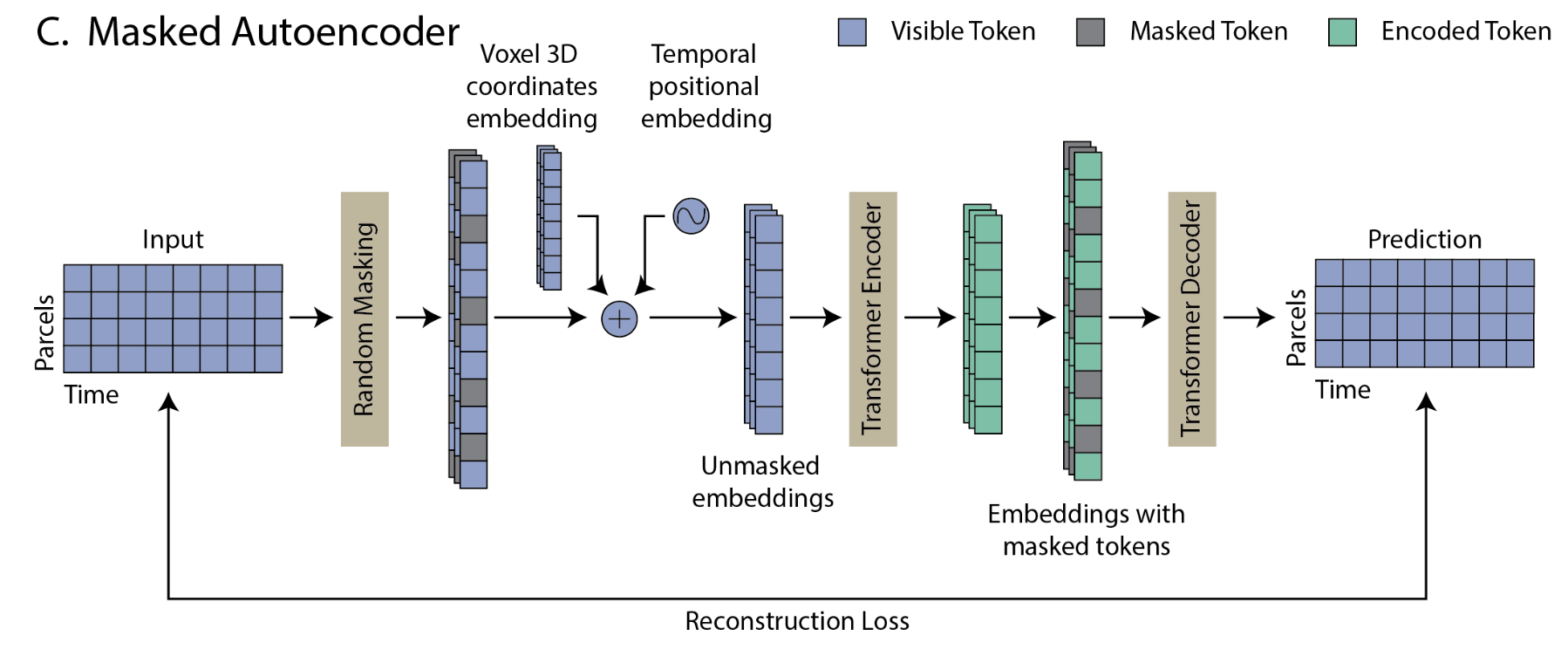

Model Architecture: Masked Autoencoder

Forecasting Brain States

Generalization to New Cohorts

  • Task: Predict next 20 time-steps
  • Top: Unseen patients from UKB
  • Bottom: Completely unseen data from HCP
Forecasting

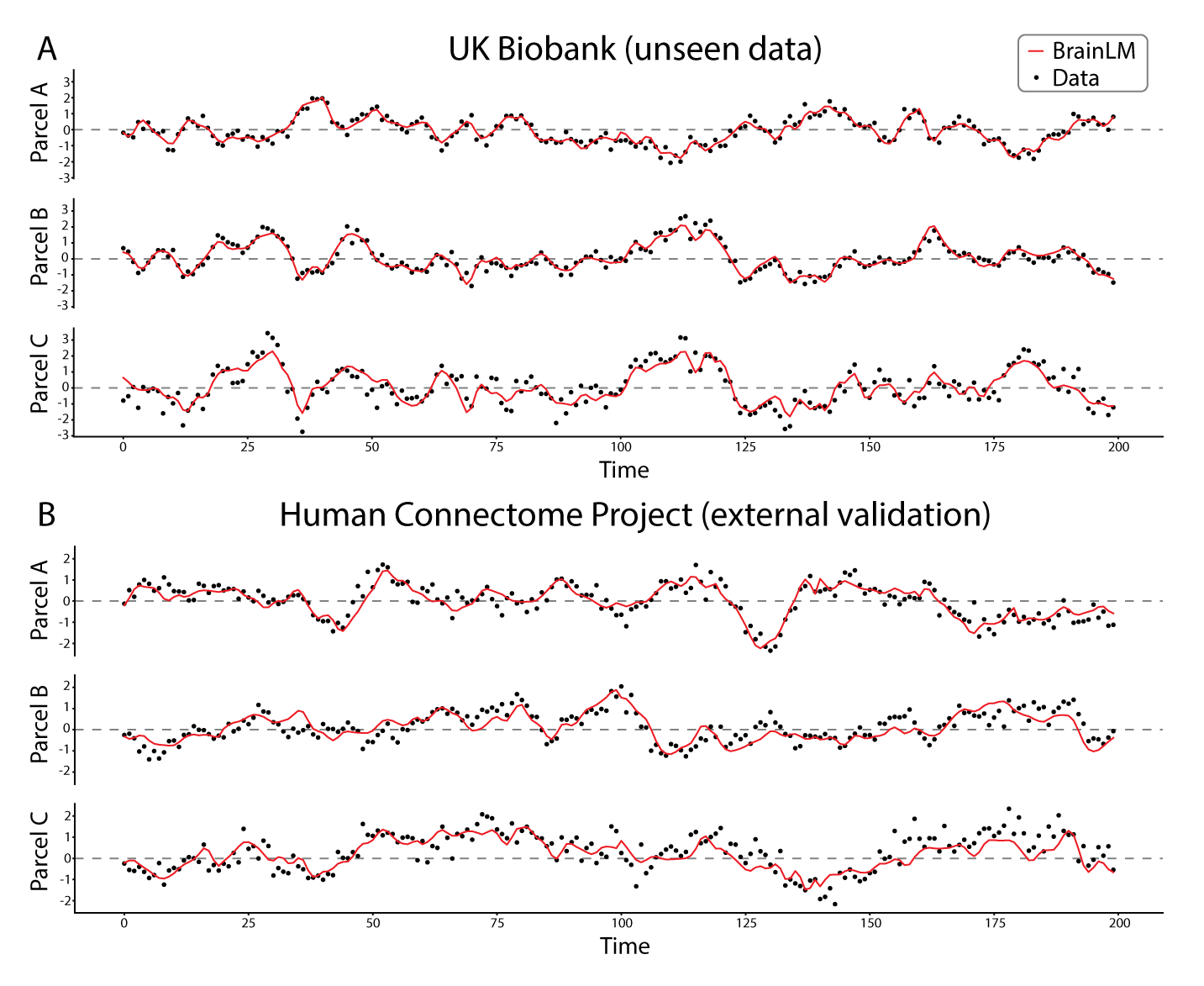

BrainLM (red) matches ground truth (black) on UK Biobank and HCP

The Latent Space

Self-organized by clinical dimensions

Latent Space

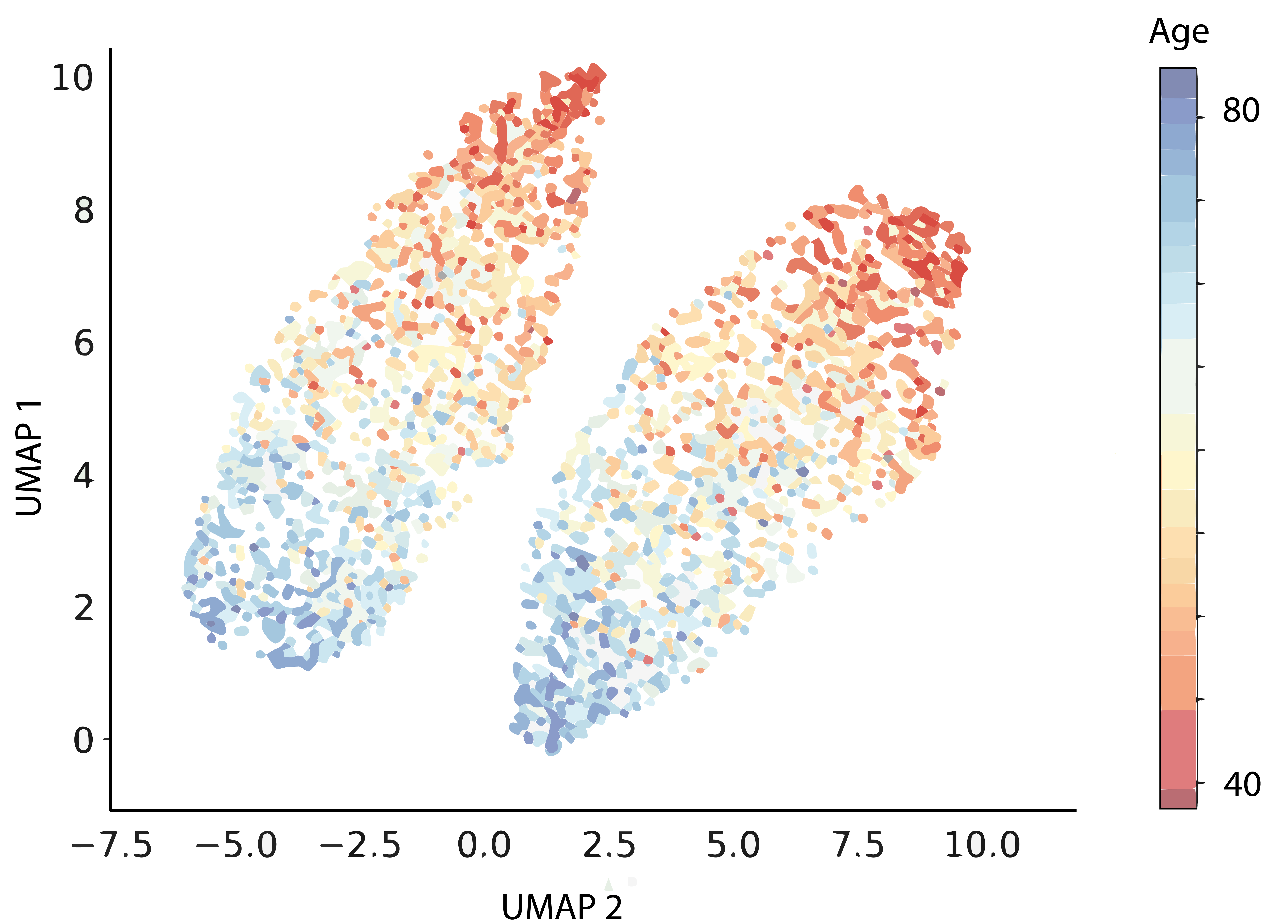

UMAP shows organization by age (color) and task vs rest (clusters)

Clinical Variable Prediction

  • Task: Predict Age, Anxiety (GAD-7), PTSD (PCL-5), Neuroticism
  • Result: BrainLM achieved the lowest MSE vs baselines (LSTM, GCN, SVR)
Clinical Variable Prediction

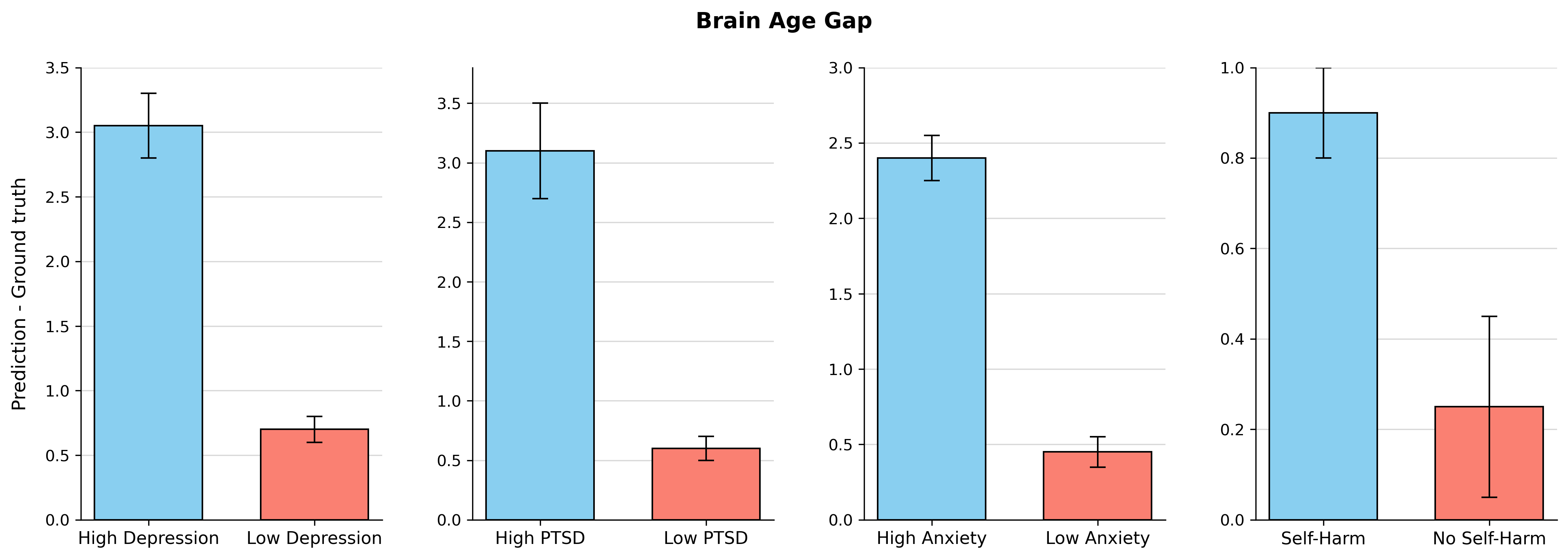

Brain Age Gap

  • Psychiatric conditions → "accelerated brain aging"
  • Predict age, calculate residual (predicted - true)
  • Finding: High psychiatric scores → elevated brain age gap
Brain Age Gap

Can Treatment Reverse Brain Aging?

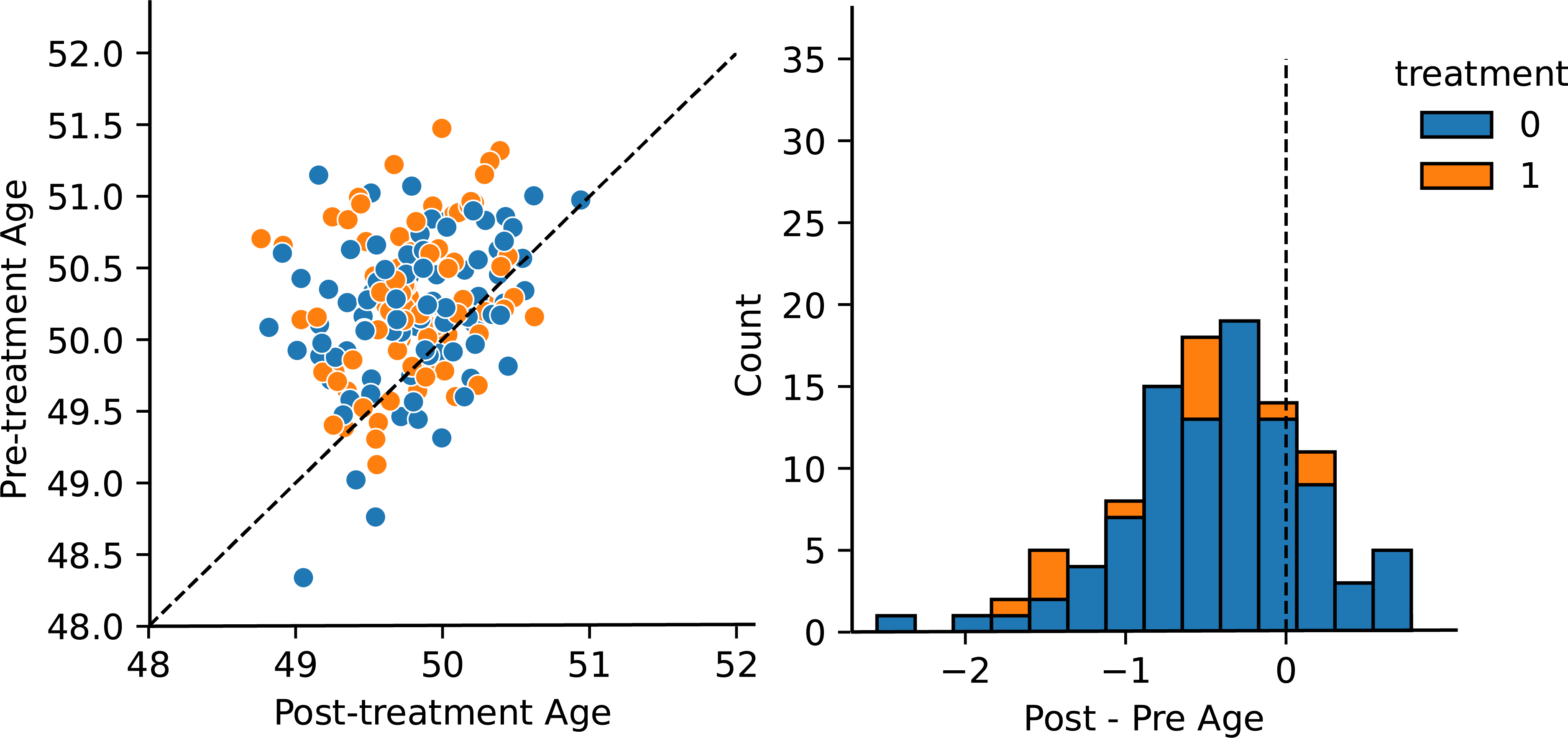

EMBARC Age Prediction

EMBARC trial: Mean change -0.70 years after one week — brain age is state-dependent

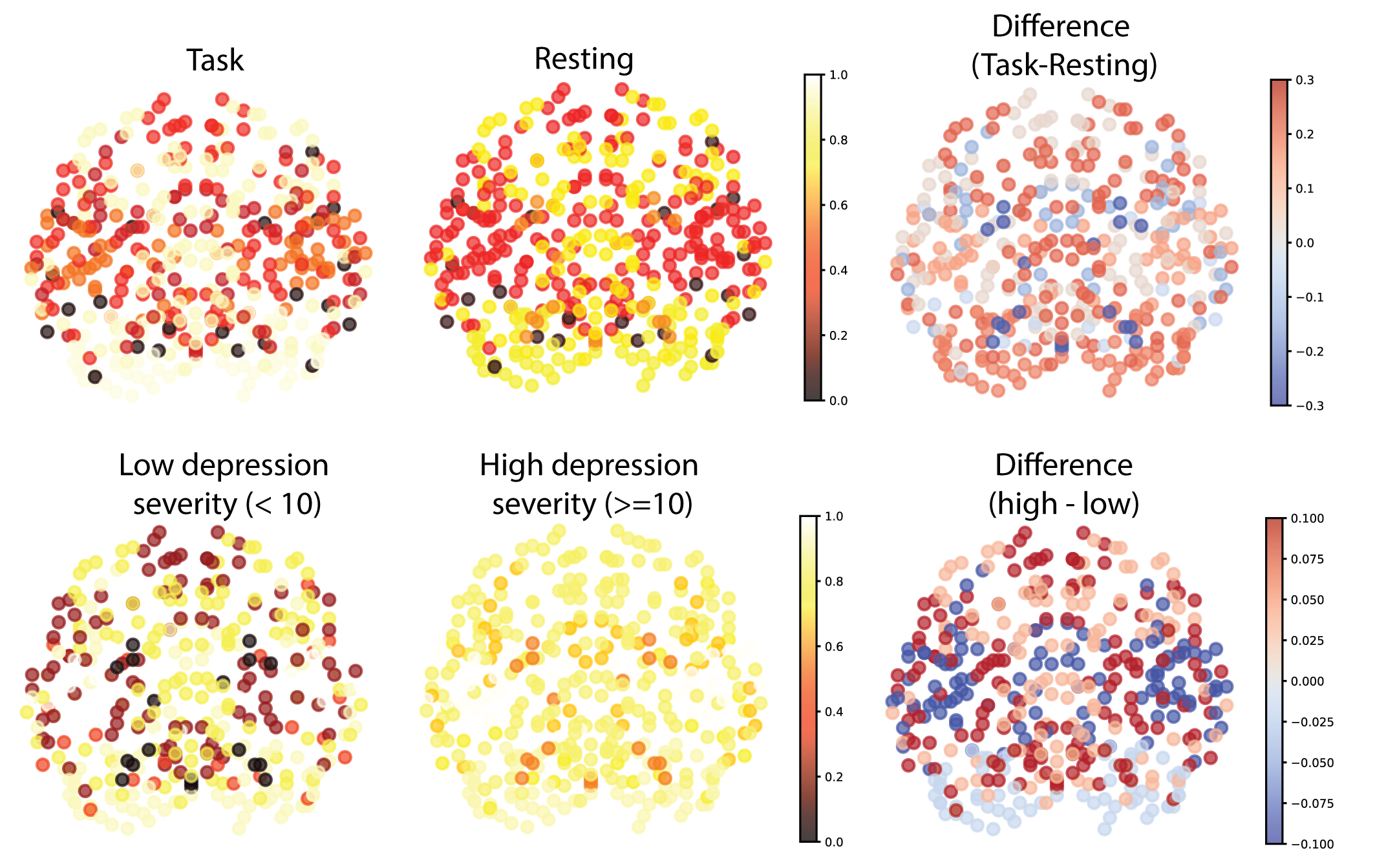

Interpretability: Attention Maps

Figure 9

High depression → reduced attention in sgACC (emotion regulation) — aligns with pathophysiology

Zero-Shot Functional Networks

  • Task: Segment brain into functional networks
  • Method: Use attention weights, no labels
  • Result: BrainLM achieves 58.8% accuracy (vs GCN 25.9%)

Summary

  • First foundation model for fMRI at scale
  • Generalizes to new scanners and cohorts
  • Clinical utility: Predicts psychiatric variables
  • Interpretable: Attention maps align with neuroscience

Future: Integration with EEG, Genomics, expanded atlases

Acknowledgments

Collaborators: Josue Ortega Caro, Jaewon Chung, Syed A. Rizvi, Jans Solano, Christopher Averill, Antonio H. de O. Fonseca, Matteo Rosati, David van Dijk & Chadi G. Abdallah

Support: Yale Wu Tsai Institute

van Dijk Lab: https://www.vandijklab.org

Code: github.com/vandijklab/BrainLM
